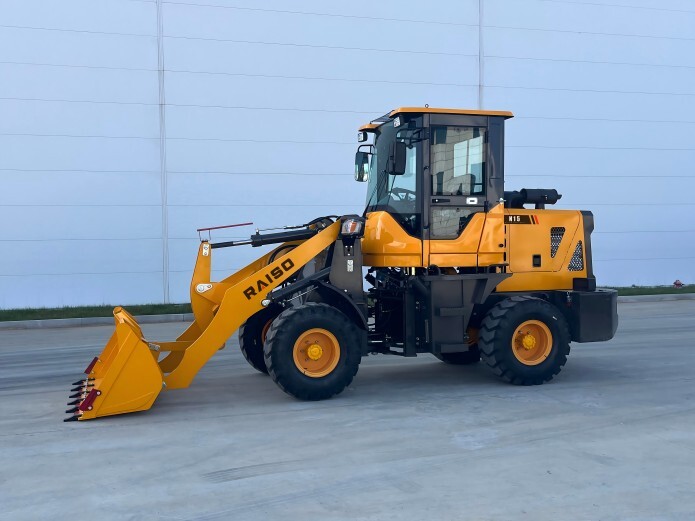

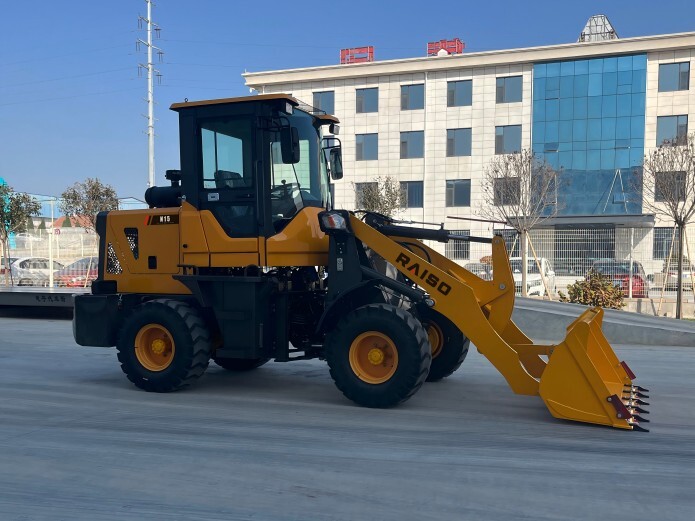

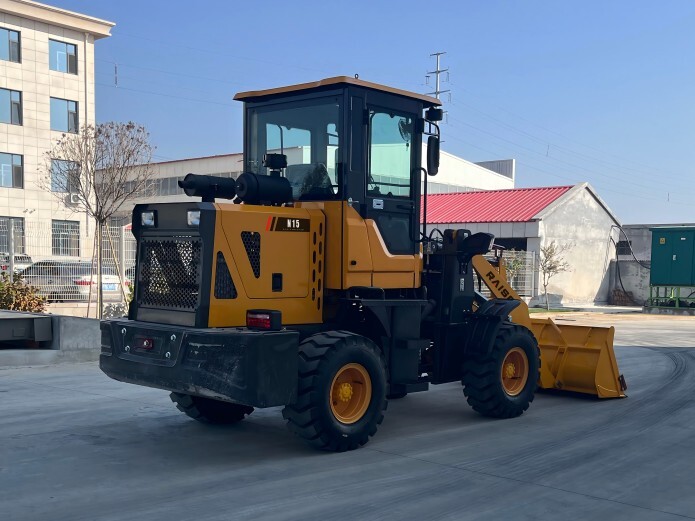

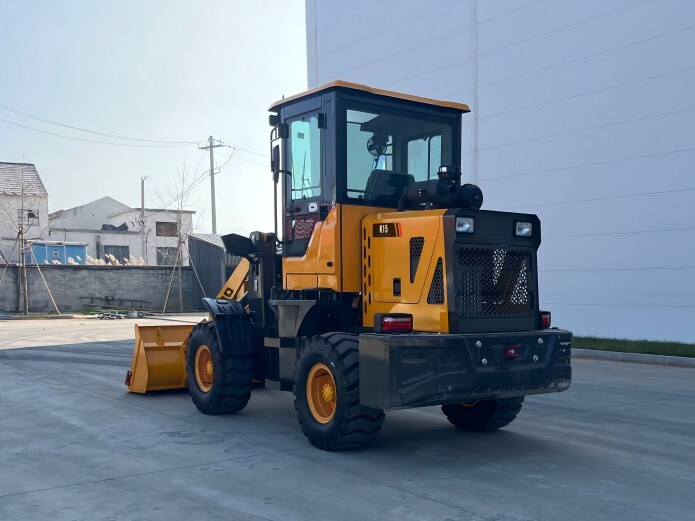

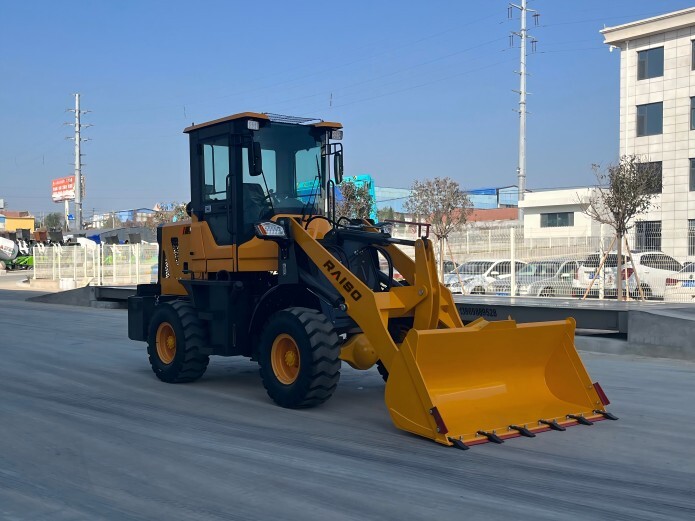

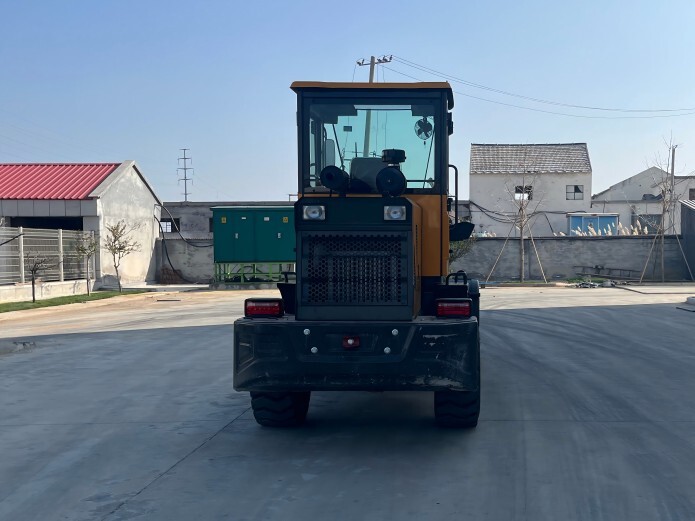

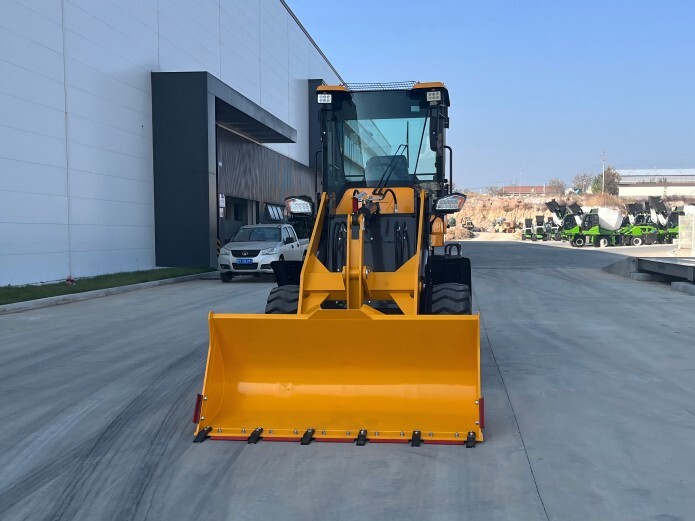

WHEEL LOADER

N15

Rated Load

1500kg

Overall Dimension

5100X1800X2650mm

Engine Model

Xichai490

Rated Power/speed

37KW/2400


Production Introduction

1. Structural parts: Self-made structural and cover components use laser cutting and CNC processing, with Panasonic robot welding. All parts are then shot blasted, electrophoretic treated, and electrostatically coated, yielding a stable, balanced vehicle with vibrant, long-lasting color and better anti-rust performance.

2. Hydraulic system: Our hydraulic system uses customized parts, H-type joints for pipes made by Qingdao Rubber 6, ensuring sufficient flow and low leakage risk. A customized enlarged water tank and radiator provide a reasonable oil pipe layout and system design, effectively preventing high temperature risks.

3. Transmission system: Equipped with a KINLIT export-grade transmission, its gears are made of durable materials for long life. The customized axle system, including reducer and semi-shaft, is enlarged and strengthened. The gear ratio matches the engine and transmission, ensuring low failure and high efficiency.

4. Power system: Equipped with renowned engines (Xichai, Yuchai, Yunnei, Cummins, Kubota, etc.), customizable internal accessories, and optional three-level air filters based on environment. Low failure rate, high power, and customer-approved customizations available.

5. Operation system: Simply operation Joystick, with optional hydraulic or electric control for labor-saving convenience. Double high/low speed design enhances work efficiency and comfort. Two-speed mode with full hydraulic control ensures smoother running.






Product Data

ModelN15
Bucket Capacity0.6m³
Rated Load1500kg
Overall Dimension5100X1800X2650mm
Max. Dumping Height3200mm
Engine ModelXichai490
Rated Power/Speed37KW/2400

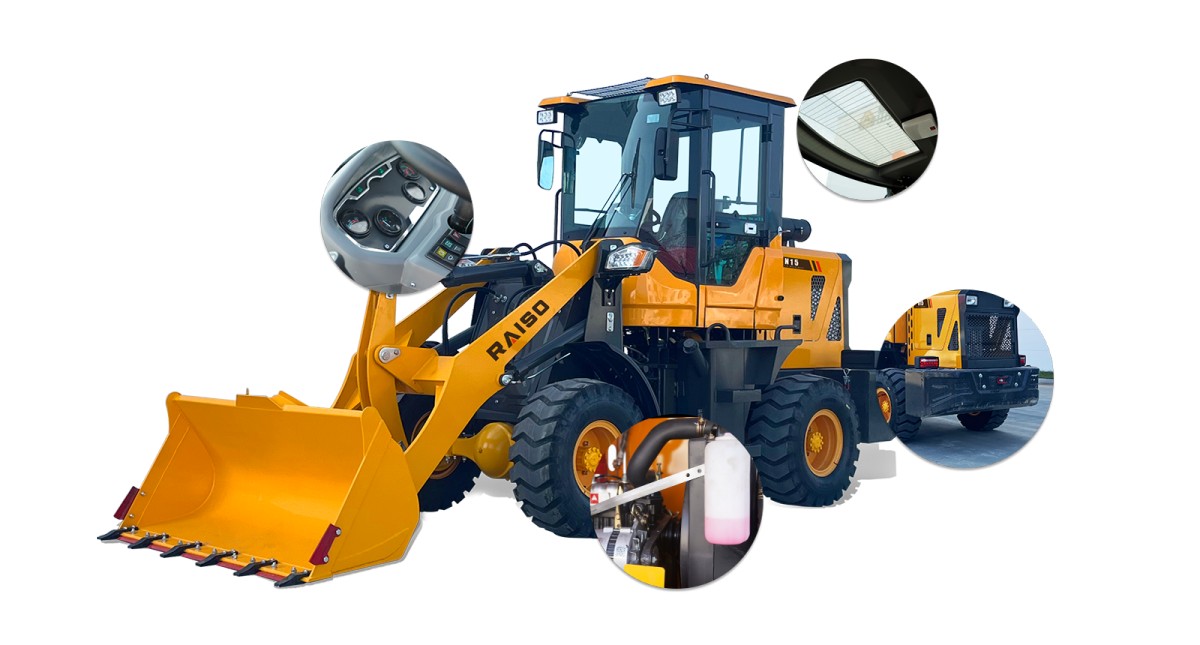

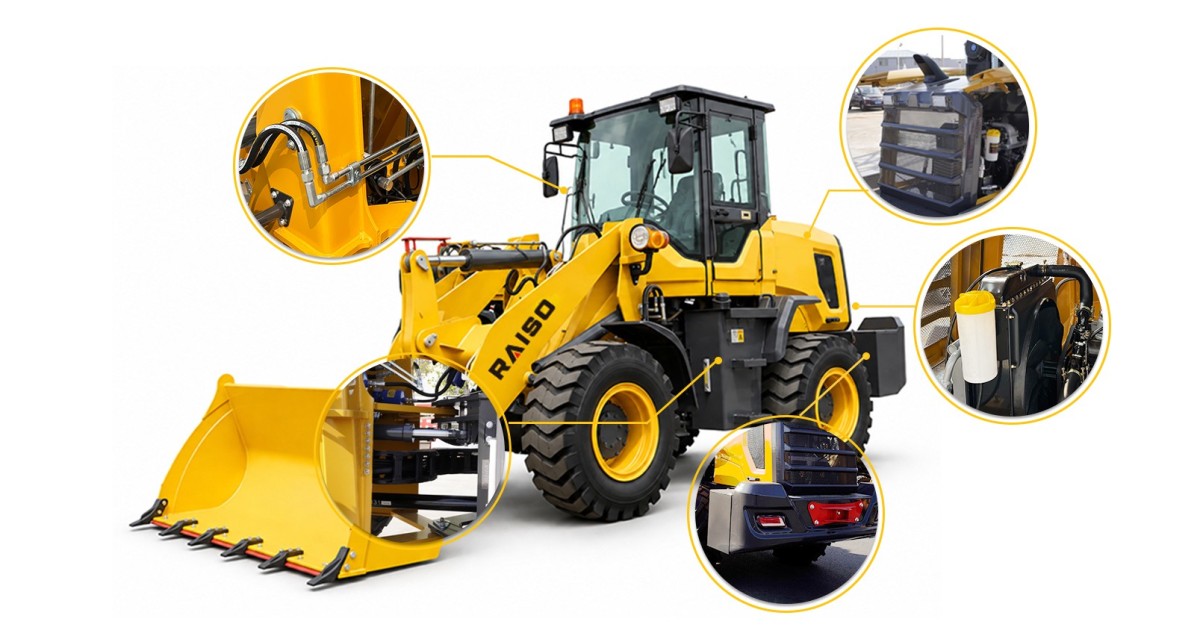

Product Details



Production Feature

1. Classic one-piece molded cab design with cage structure, skylight on top with protection net, high safety and wide vision.

2. Structural parts, cab, rear hood, rear counterweight are all electrophoresis treated, and with electrostatic spraying, make the whole machine brighter and better anti-rust performance.

3. Secondary processing of key holes by boring machine, providing higher concentricity.

4. Customized export standard torque converter, axle and gearbox, perfectly matched with each other, make the entire loader run more stable and effective, and reduce the failure rate by 30%.

5. Equipped with well-known brand engine, low failure rate and strong power. We also support a variety of brand options.

6. High standards of detailing, such as patented shock pads, German standard wiring harnesses, customized radiators, high quality gear pumps, steering gears, etc., just to provide customers with perfect equipment with low failure rate.


Mechanical attachments
