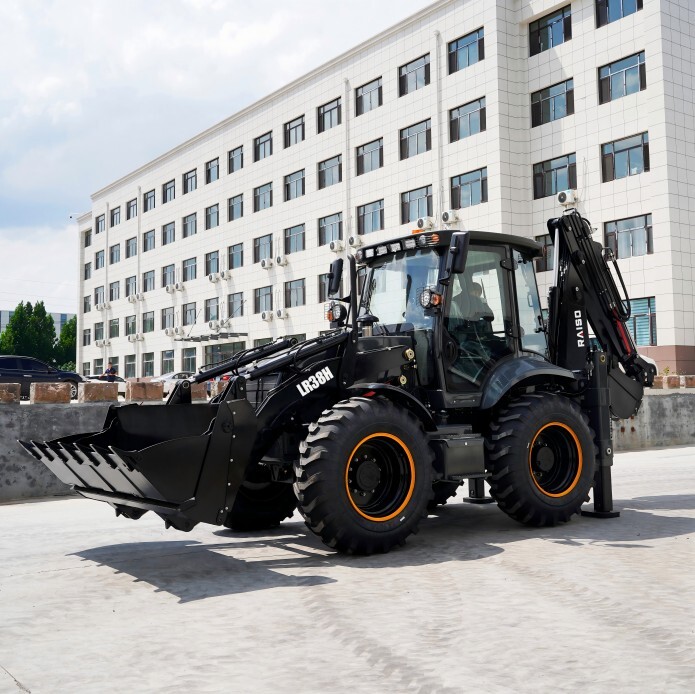

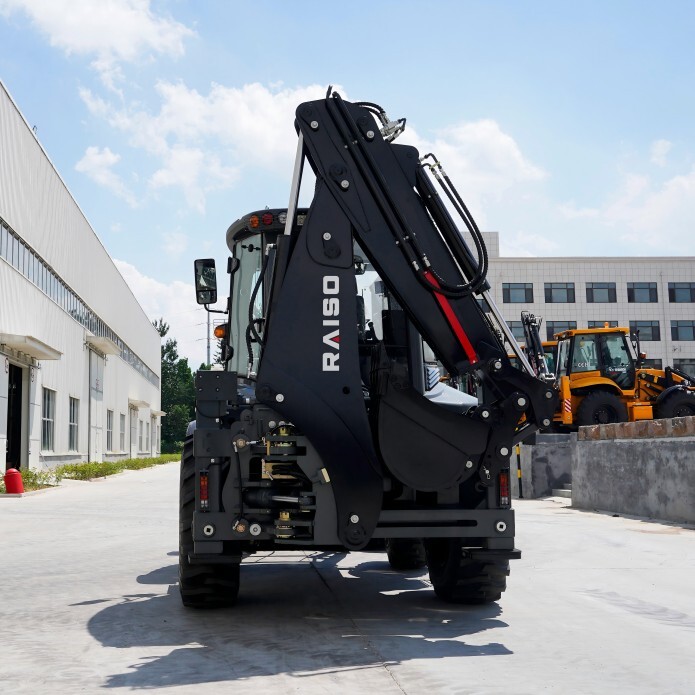

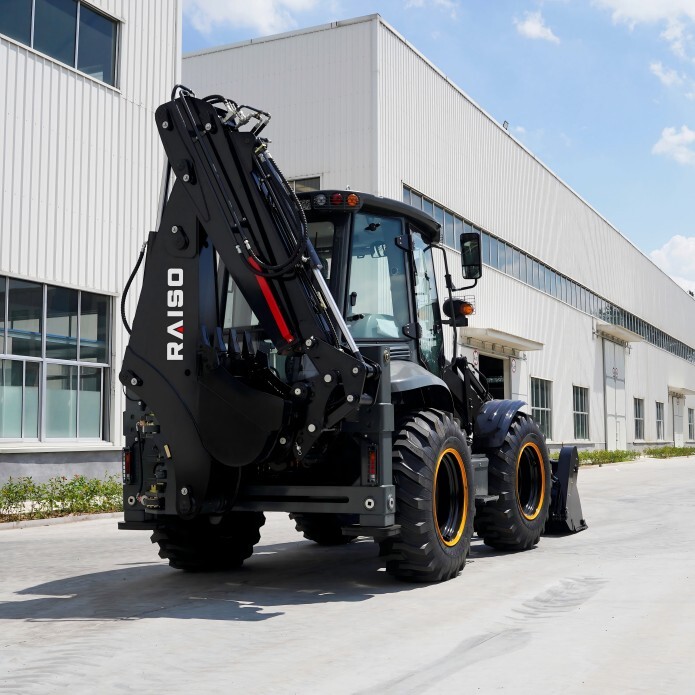

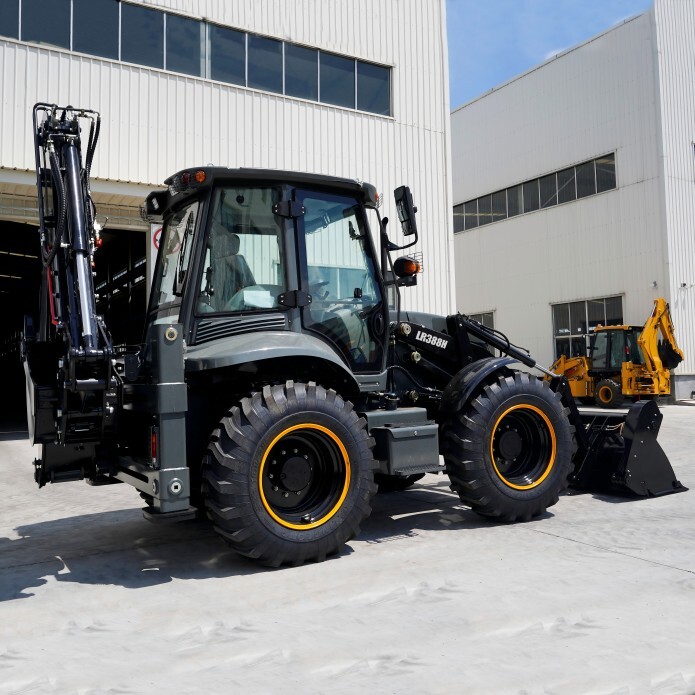

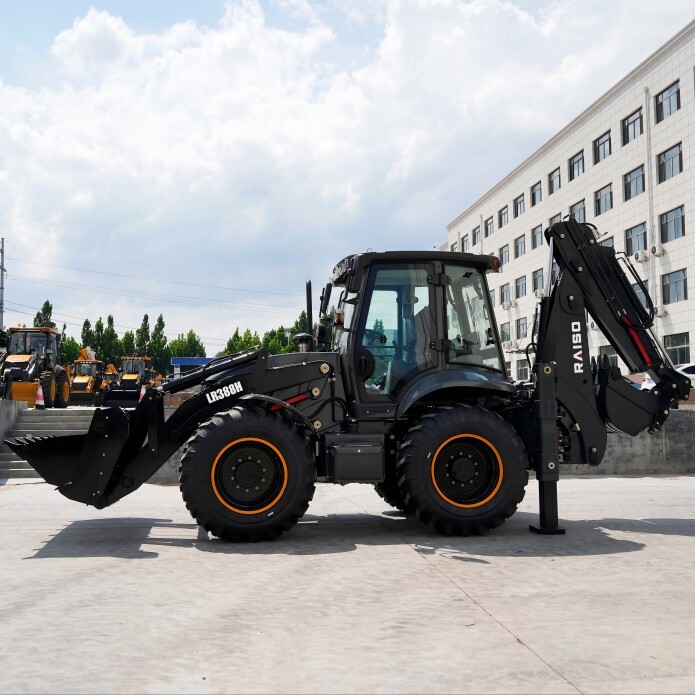

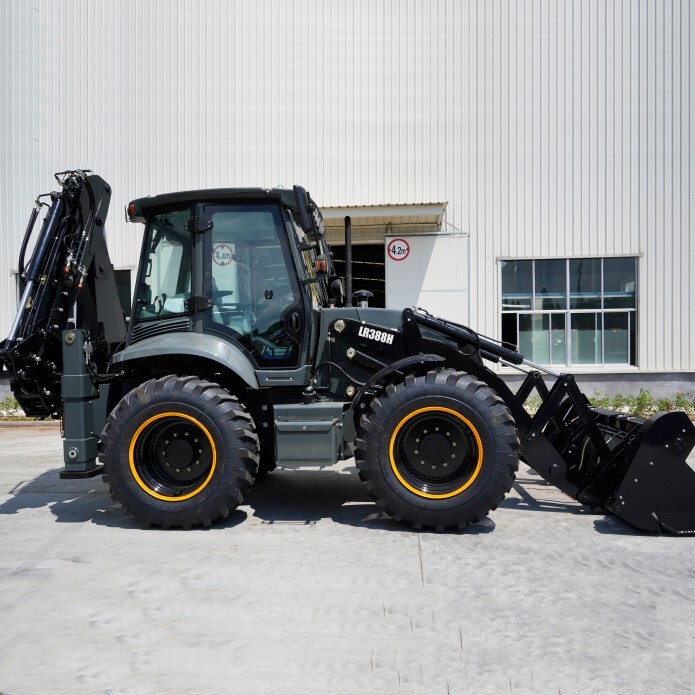

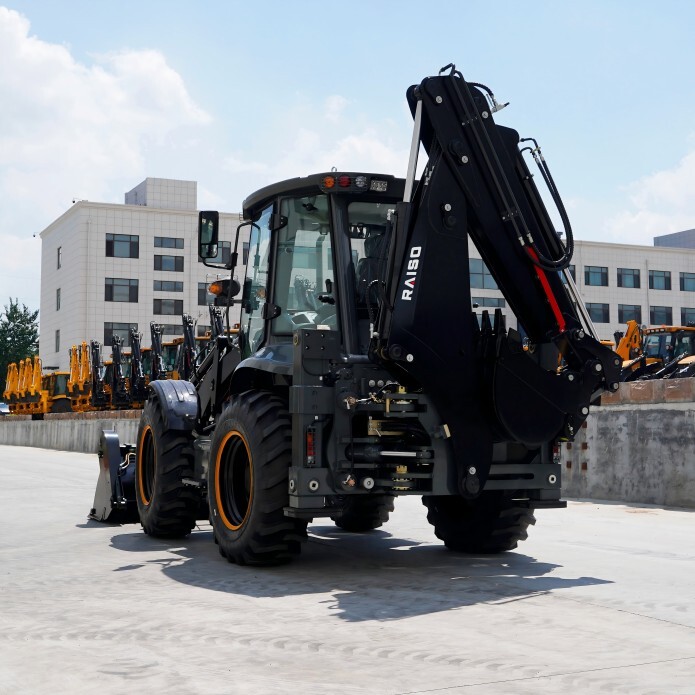

WHEEL LOADER

LR388h

Bucket capacity

1.2m³

Rated load

2500kg

Overall Dimension

6450*2530*3120mm

Max. dumping heigh

3050mm


Production Introduction

1. Cab: Well-designed ROPS&FOPS cab provides excellent driving environment and spacious interior space. Equipped with comfortable seats and vibration damping system, improving driving comfortable.

2. Structure parts: The main structural components, such as the boom and bucket, are made of high-strength materials like manganese steel, which are durable, wear-resistant, and deformation-resistant, capable of enduring the harsh working conditions underground.

3. Power system: Equipped with well-known engines with perfect global after-sales service, can match different emission standards such as National II, III, IV, Euro V etc.. The power is more sufficient and the failure rate is lower.

4. Wide application: Suitable for all kinds of terrain and engineering conditions. Whether for urban road construction, rural road maintenance, farmland water conservancy projects, mining stone quarrying, agriculture, etc., can play its unique advantages.

5. Multi-functional system: Optional various attachments such as 4 in1 bucket, telescopic excavator arm, etc.. Integrating the functions of digging, loading and carrying, can easily complete different working conditions operations by utilizing different attachments.






Product Data

ModelLR388H
Bucket capacity1.2m³
Rated load2500kg
Overall Dimension6450*2530*3120mm
Max. dumping heigh3050mm
Engine modelYuchai 4105T
Rated power/speed75KW/115HP

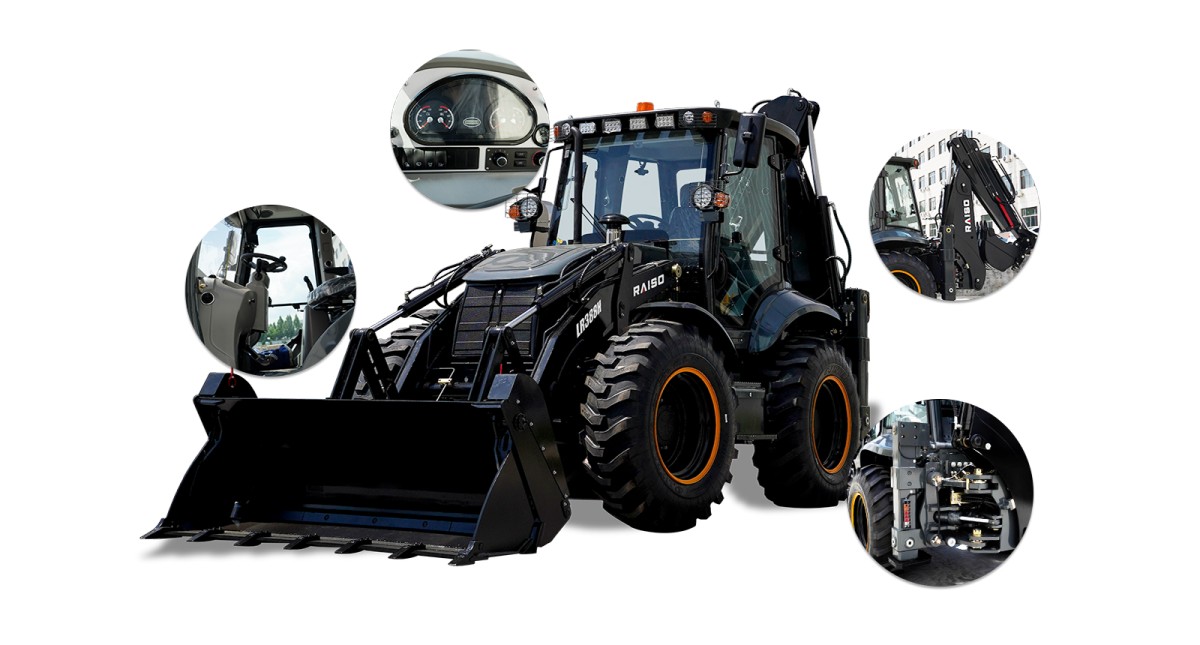

Product Details



Production Feature

1. Structural parts, cab, rear hood, rear counterweight are all electrophoresis treated, and with electrostatic spraying, make the whole machine brighter and better anti-rust performance.


2. Equipped with multifunctional FOPS&ROPS protection cab and advanced driver assistance systems, reduces accident risks and ensures operators safety.


3. The integrated body structure, the chassis is stronger, stable structure , can adapt to difficult and complex working condition.


4. The standard configuration is the excellent YUNYU axle, and you can also choose the oil-immersed axle and the Carraro axle imported from Italy.


4. 4WD, 'wedge' walking helps enhance the loader's stability during operation, especially on rough terrain. In addition, it reduces wear caused by shaking and vibration, further improving the durability of the loader.


5. Independently developed transmission, perfectly matched with the axle and engine, while providing options for fully electric control and semi-electric control to meet the diverse needs of customers.


7. Equipped with well-known brand engine, such as Weichai national II/ III emission, Cummins national III 74kw/81kw and EuroV emission, lowering failure rate and providing stronger power. We also support a variety of brand options.


8. Multi-functional construction machinery integrates multiple functions into one unit, such as 4 in1 bucket, telescopic excavator arm digging, loading, crushing, grading, etc., significantly improving work efficiency.

Mechanical attachments
